WQP stainless steel submersible sewage pump efficiently solves drainage problems

Περιγραφή προϊόντων

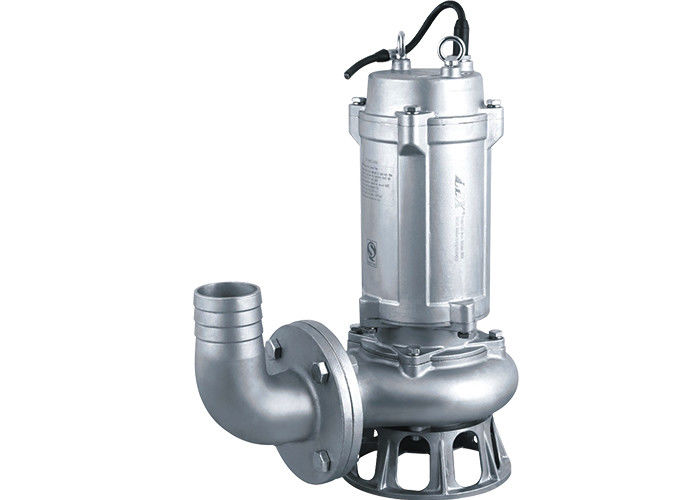

WQP Stainless Steel Submersible Sewage Pump efficiently solves drainage problems

WQP Stainless Steel Submersible Sewage Pump Overview:

The stainless steel submersible sewage pump is constructed entirely of stainless steel, suitable for applications with corrosive media. It is non-clogging, features automatic coupling installation, is equipped with a motor monitoring system, and has a leak protection function.

WQP Stainless Steel Submersible Sewage Pump Applications:

Stainless steel submersible sewage pumps can be used for the discharge of severely polluted factory wastewater, urban sewage treatment, industrial wastewater from sewage systems, civil air defense drainage stations, municipal engineering projects, and construction sites. This stainless steel submersible sewage pump is a new generation pump developed based on the characteristics of domestic submersible non-clogging sewage pumps. It features energy saving, anti-entanglement, non-clogging, automatic installation, and automatic control.

WQP Stainless Steel Submersible Sewage Pump Product Features:

1. The WQP series stainless steel submersible sewage pumps utilize large flow channels and anti-clogging hydraulic components, significantly improving waste flow capacity. They can effectively pass fibrous materials up to five times the pump diameter and solid particles up to approximately 50% of the pump diameter.

2. Its rational design and matching motor ensure high efficiency and significant energy savings. 3. The mechanical seal utilizes a double-pass tandem seal made of hard, wear-resistant tungsten carbide, offering durability and wear resistance, ensuring the pump's safe and continuous operation for over 8,000 hours.

4. The pump features a compact design, small size, ease of movement, and simple installation. No pump room is required; it can be submerged in water, significantly reducing construction costs.

5. An oil-water probe is installed within the pump's oil chamber. If the mechanical seal on the pump side is damaged and water enters the chamber, the probe generates a signal, protecting the pump.

6. A fully automatic safety control cabinet can be installed upon request to monitor the pump for leaks, electrical leakage, overload, and overtemperature, ensuring reliable and safe operation.

7. The dual-rail automatic coupling mounting system greatly facilitates pump installation and maintenance, eliminating the need for personnel to enter and exit the sump.

8. The float switch automatically controls the pump's start and stop based on the desired water level, eliminating the need for dedicated personnel.

9. The motor is guaranteed to operate without overload within the operating head range. 10. Depending on the application, the motor can utilize a water-jacketed external third-party cooling system, ensuring safe operation in a dry state.

11. Two installation methods are available: fixed automatic coupling and mobile free-standing, meeting various application requirements.

WQP Stainless Steel Submersible Sewage Pump Parameters:

It is one part of stainless steel submersible sewage pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
