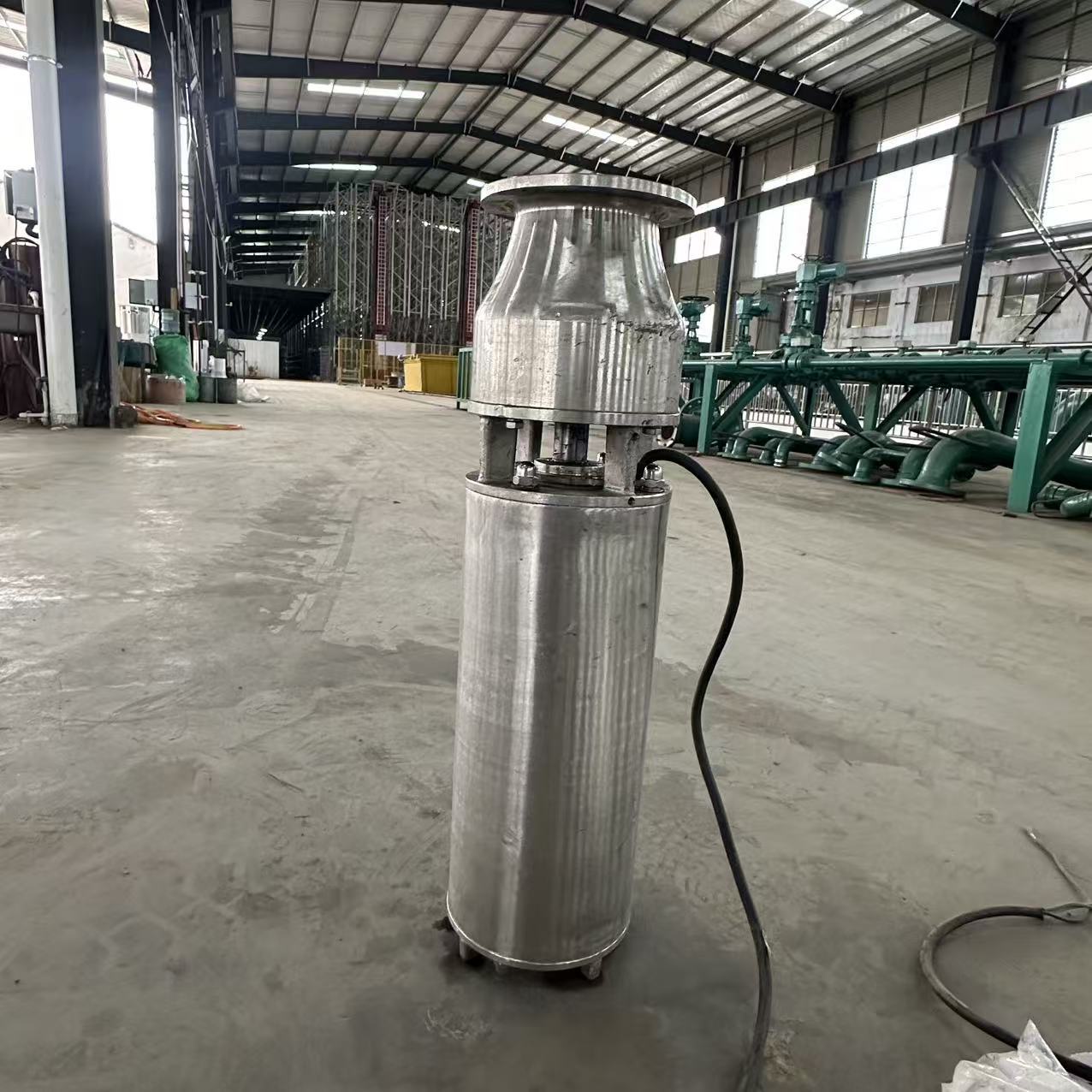

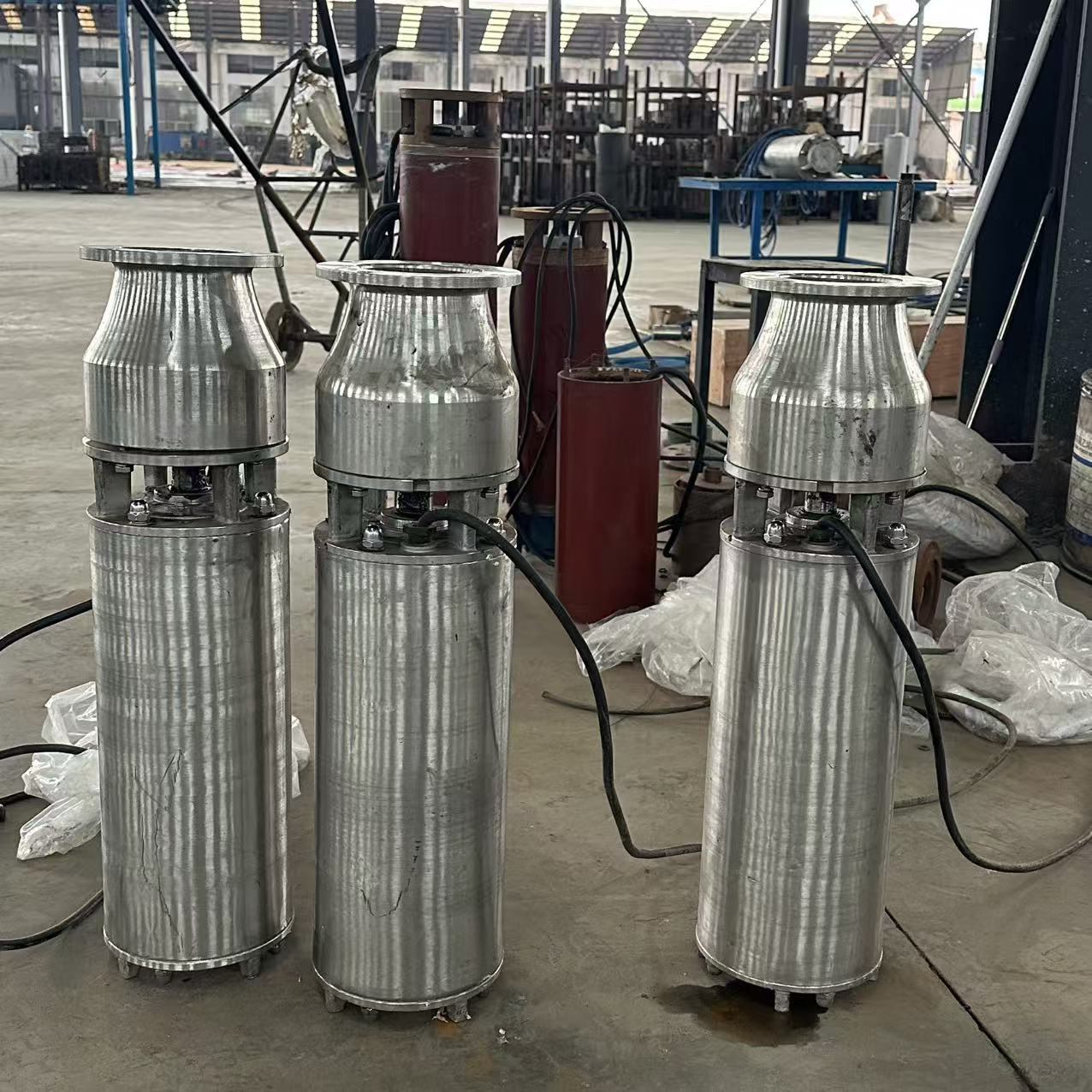

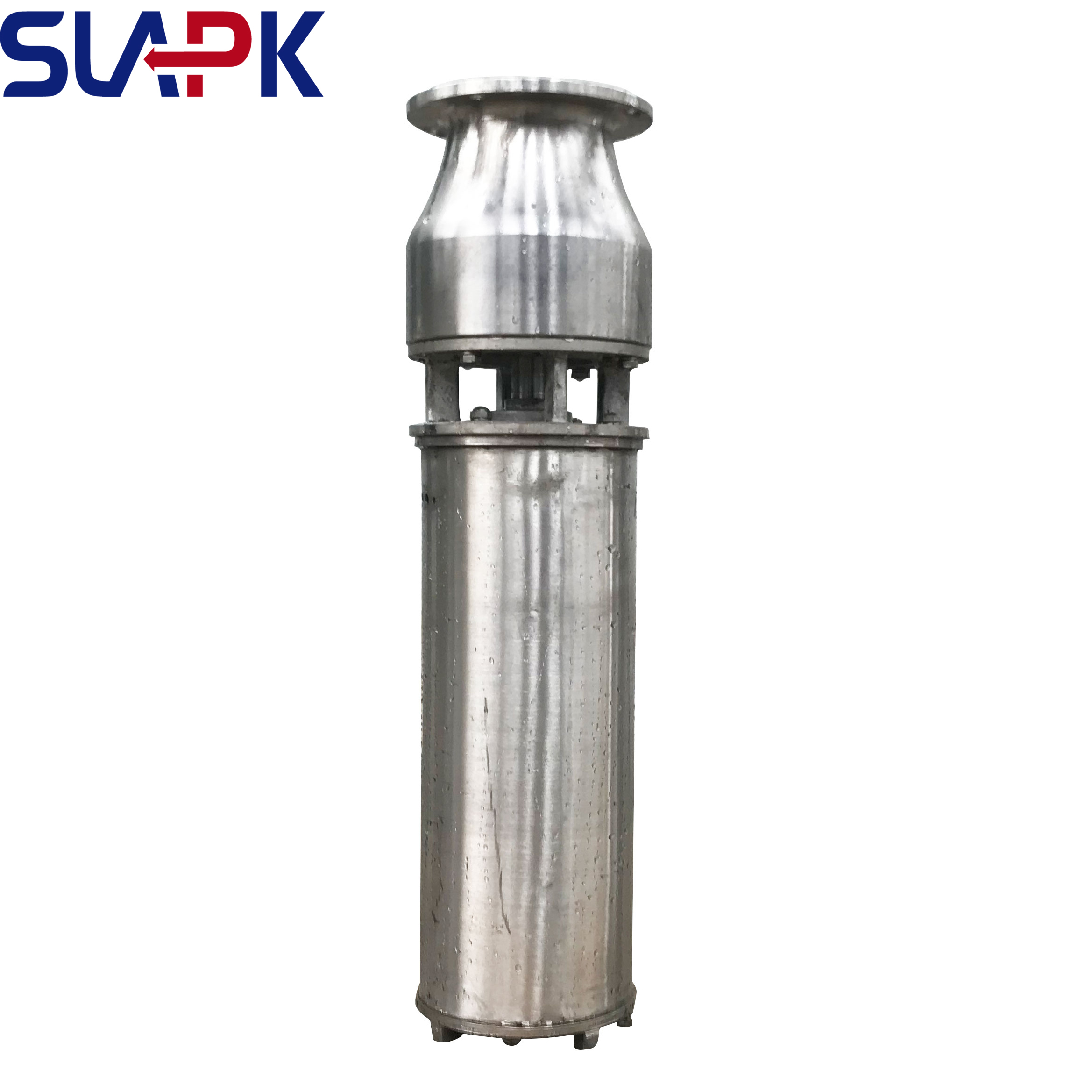

5.5kW / 7.5kW High Head 10-150m High Flow Stainless Steel Water Fountain Pump | Customizable | 40-Year Manufacturer
5.5kW / 7.5kW High HeadHigh Flow Stainless Steel Water Fountain PumpCore Advantages :
【40 Years of Expertise】 From a professional pump manufacturer with nearly 40 years of experience in precision engineering. Trust proven reliability and quality.
【High Head & High Flow】 Engineered for demanding fountain, landscape water features, and industrial circulation. Achieve impressive water displays with a head range of 10-150 meters and robust flow capacity.
【304/316 Stainless Steel Construction】 Full stainless steel (SS304/SS316) build ensures superior corrosion resistance, durability, and long service life.
【Flexible Power Options】 Choose between 5.5kW and 7.5kW models to perfectly match your project scale.
【Deep Customization Available】 More than just standard pumps! Customize according to your specific working conditions: Voltage (380V/415V/480V, etc.), Frequency (50Hz/60Hz), Precise Head/Flow requirements, Cable Length, Discharge Size, Special Materials, Explosion-Proof options, and more. Guaranteed perfect fit for your application.
【Energy-Efficient Design】 Optimized hydraulic model and high-efficiency motor reduce long-term operating costs.
Technical Specifications Overview:
Rated Power: 5.5 kW / 7.5 kW
Head Range: 10 - 150 meters (Adjustable based on customization)
Flow Range:10-220m3/h
Pump Body Material: Premium Stainless Steel (SS304 Standard, SS316 Optional)

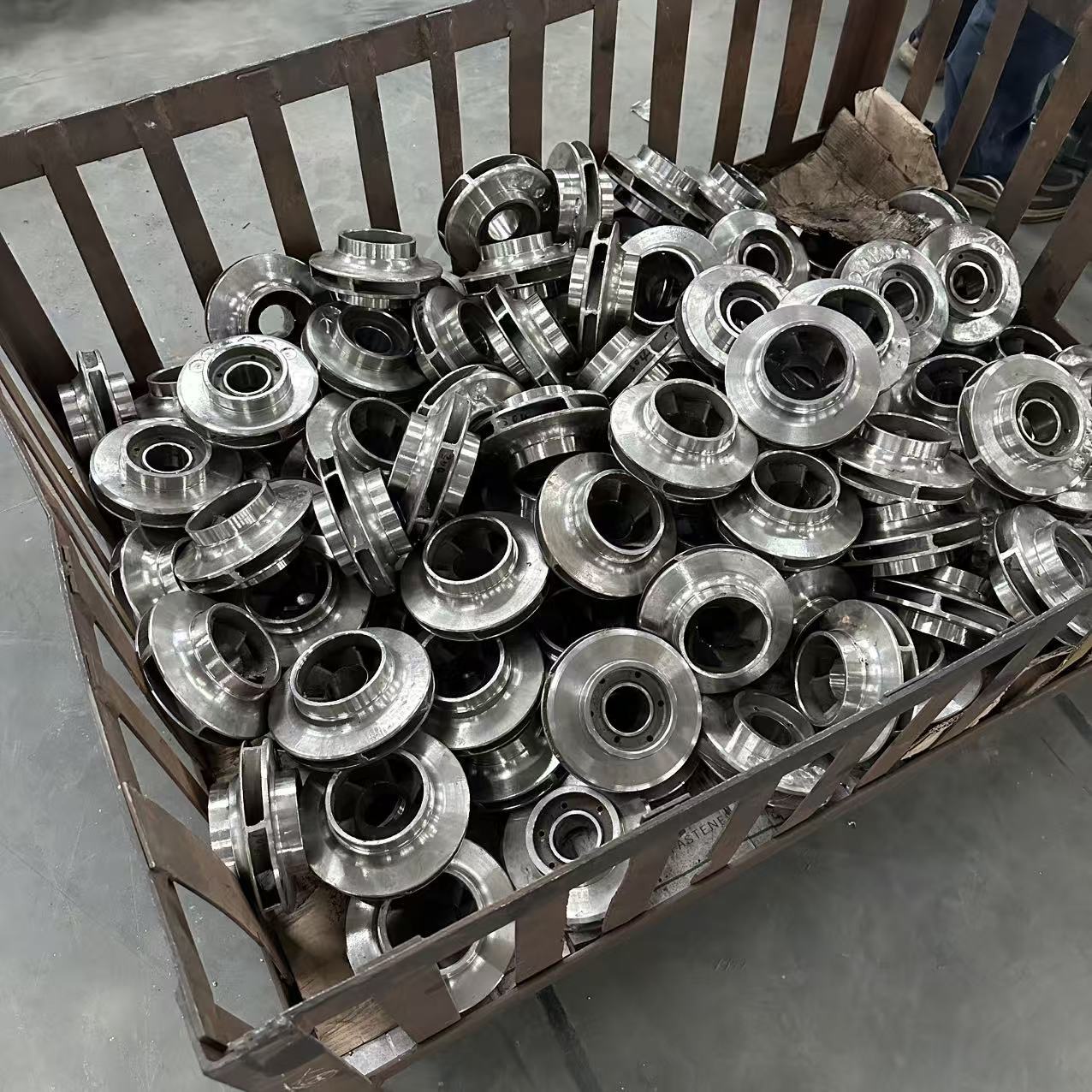

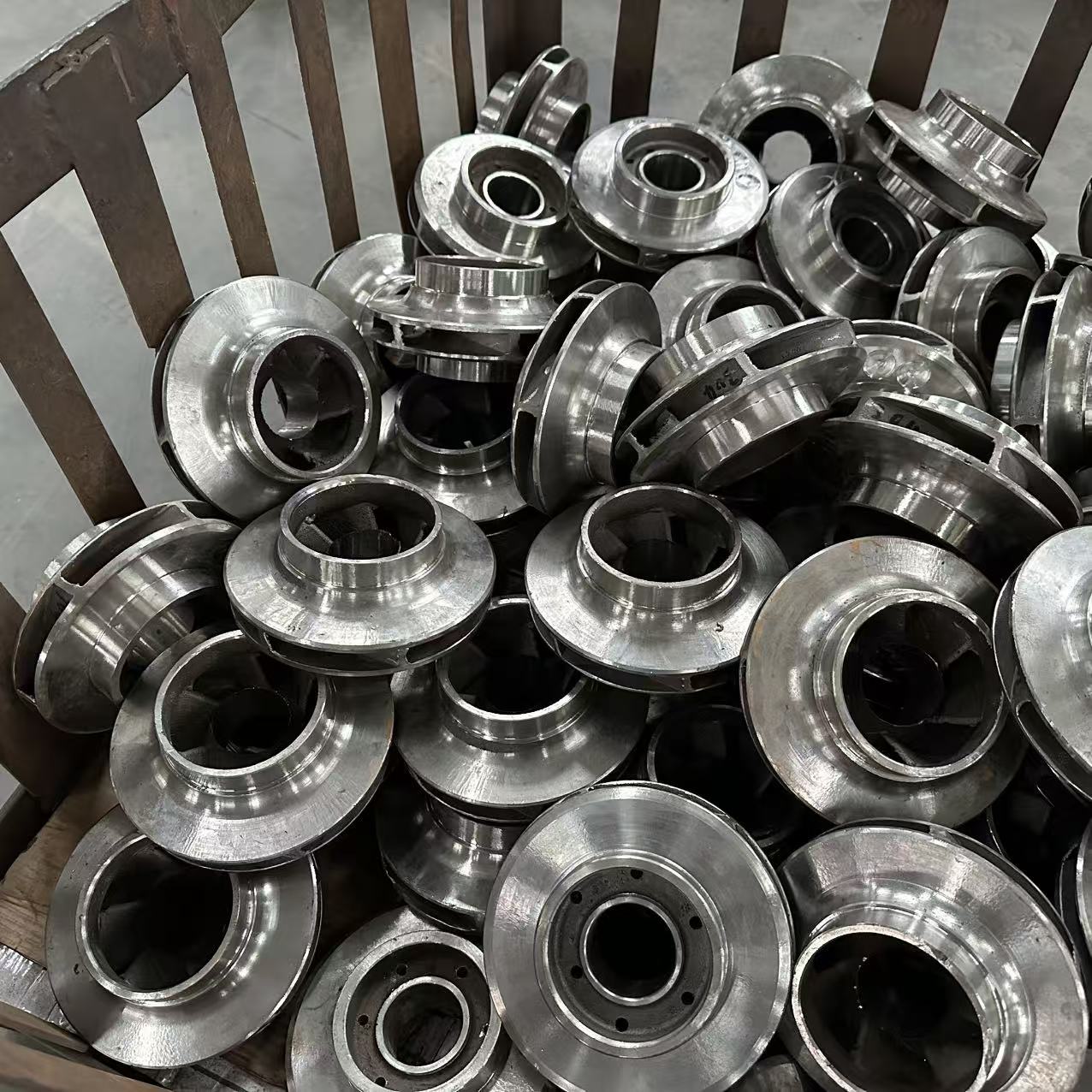

Impeller Material: Stainless Steel
Shaft Material: Stainless Steel
Motor: High-Efficiency 3-Phase Induction Motor (IP68 Protection, Class F Insulation)
Voltage/Frequency: Customizable (Standard Options: 380V/50Hz, 415V/50Hz, 480V/60Hz, etc.)
Cable Length: Customizable
Discharge Connection: Flange
Liquid Temperature: 0°C to +40°C
QSP Fountain pump Parameter Table:
|
model
|
flow
(m/h)
|
Head
(m)
|
Power
(kw)
|
Maximum outer diameter
(mm)
|
Pump height
(mm)
|
|
QSP10-10-0.55
|
10
|
10
|
0.55
|
150
|
420
|
|
QSP10-7-0.55
|
15
|
7
|
0.55
|
150
|
420
|
|
QSP10-13-0.75
|
10
|
13
|
0.75
|
168
|
440
|
|
QSP15-10-0.75
|
15
|
10
|
0.75
|
168
|
440
|
|
QSP25-6-0.75
|
25
|
6
|
0.75
|
168
|
440
|
|
QSP10-13-0.75
|
10
|
13
|
0.75
|
168
|
440
|
|
QSP25-9-1.1
|
25
|
9
|
1.1
|
168
|
460
|
|
QSP40-6-1.1
|
40
|
6
|
1.1
|
168
|
460
|
|
QSP15-14-1.1
|
15
|
14
|
1.1
|
150
|
460
|
|
QSP65-5-1.1
|
65
|
5
|
1.1
|
150
|
460
|
|
QSP25-12-1.5
|
25
|
12
|
1.5
|
168
|
460
|
|
QSP40-8-1.5
|
40
|
8
|
1.5
|
168
|
460
|
|
QSP15-26-2.2
|
15
|
26
|
2.2
|
168
|
535
|
|
QSP20-20-2.2
|
20
|
20
|
2.2
|
168
|
535
|
|
QSP25-17-2.2
|
25
|
17
|
2.2
|
168
|
570
|
|
QSP40-13-2.2
|
40
|
13
|
2.2
|
168
|
560
|
|
QSP65-7-2.2
|
65
|
7
|
2.2
|
168
|
570
|
|
QSP40-16-3
|
40
|
16
|
3
|
168
|
530
|
|
QSP40-18-3
|
40
|
18
|
3
|
168
|
530
|
|
QSP45-16-3
|
45
|
16
|
3
|
168
|
530
|
|
QSP25-25-3
|
25
|
25
|
3
|
168
|
530
|
|
QSP32-20-3
|
32
|
20
|
3
|
168
|
530
|
|
QSP50-13-3
|
50
|
13
|
3
|
168
|
530
|
|
QSP65-10-3
|
65
|
10
|
3
|
168
|
610
|
|
QSP15-36/2-3
|
15
|
36
|
3
|
168
|
640
|
|
QSP30-25/2-3
|
30
|
25
|
3
|
168
|
640
|
|
QSP20-30/2-3
|
20
|
30
|
3
|
168
|
640
|
|
QSP15-40/3-3
|
15
|
40
|
3
|
168
|
750
|
|
QSP40-21-4
|
40
|
21
|
4
|
168
|
600
|
|
QSP40-24-4
|
40
|
24
|
4
|
168
|
600
|
|
QSP65-13-4
|
65
|
13
|
4
|
168
|
600
|
|
QSP80-10-4
|
80
|
10
|
4
|
168
|
610
|
|
QSP100-7-4
|
100
|
7
|
4
|
184
|
650
|
|
QSP25-36/2-4
|
25
|
36
|
4
|
168
|
700
|
|
QSP15-45/3-4
|
15
|
45
|
4
|
168
|
810
|
|
QSP15-52/4-4
|
15
|
52
|
4
|
168
|
920
|
|
QSP20-40/2-4
|
20
|
40
|
4
|
168
|
700
|
|
QSP30-26/2-4
|
30
|
26
|
4
|
168
|
700
|
|
QSP40-28-5.5
|
40
|
28
|
5.5
|
225
|
620
|
|
QSP45-25-5.5
|
45
|
25
|
380
|
620
|
|
|
QSP60-20-5.5
|
60
|
20
|
5.5
|
184
|
620
|
|
QSP65-18-5.5
|
65
|
18
|
5.5
|
184
|
620
|
|
QSP120-10-5.5
|
120
|
10
|
5.5
|
205
|
760
|
|
QSP200-8-5.5
|
200
|
8
|
5.5
|
205
|
760
|
|
QSP220-5-5.5
|
220
|
5
|
5.5
|
205
|
760
|
|
QSP250-5-5.5
|
250
|
5
|
5.5
|
205
|
760
|
|
QSP40-30/2-5.5
|
40
|
30
|
5.5
|
168
|
740
|
|
QSP30-36/2-5.5
|
30
|
36
|
5.5
|
168
|
740
|
|
QSP30-40/3-5.5
|
30
|
40
|
5.5
|
168
|
840
|
|
QSP20-50/3-5.5
|
20
|
50
|
5.5
|
168
|
840
|
|
QSP20-54/4-5.5
|
20
|
54
|
5.5
|
168
|
950
|
|
QSP15-65/4-5.5
|
15
|
65
|
5.5
|
168
|
950
|
|
QSP65-25-7.5
|
65
|
25
|
7.5
|
184
|
740
|
|
QSP80-20-7.5
|
80
|
20
|
7.5
|
184
|
740
|
|
QSP100-17-7.5
|
100
|
7
|
7.5
|
205
|
780
|
|
QSP150-8-7.5
|
150
|
8
|
7.5
|
205
|
780
|
|
QSP250-8-7.5
|
250
|
8
|
7.5
|
205
|
780
|
|
QSP40-40/2-7.5
|
40
|
40
|
7.5
|
184
|
850
|
|
QSP80-24/2-7.5
|
80
|
24
|
7.5
|
184
|
880
|
|
QSP30-54/3-7.5
|
30
|
54
|
7.5
|
184
|
940
|
|
QSP25-65/3-7.5
|
25
|
65
|
7.5
|
184
|
945
|
|
QSP50-36/2-7.5
|
50
|
36
|
7.5
|
184
|
850
|
|
QSP20-78/6-7.5
|
20
|
78
|
7.5
|
184
|
1360
|
|
QSP120-18/2-7.5
|
120
|
18
|
7.5
|
205
|
880
|
Why Choose Our Fountain Pumps?
Worried about short pump life and frequent replacements?
Our Promise: Built with premium stainless steel and precise manufacturing, rigorously tested. Reliability is paramount. Our pumps are designed for continuous, long-term operation, minimizing your maintenance costs and downtime.
Need a specific head/flow that standard pumps can't deliver?
Our Solution: "Customizable according to working conditions" is our reality! Our experienced engineering team uses your specific parameters—pond depth, pipe length, number of bends, required jet height—to precisely select or design a pump. Ensure perfect performance, avoiding inefficient "over-sizing" or inadequate "under-sizing."
Dealing with challenging water quality?
Our Advantage: Stainless steel construction is ideal for corrosive water, higher sand content, or seawater applications. We recommend the optimal material (SS304 or highly corrosion-resistant SS316) based on water analysis, protecting your investment.
Need globally compatible electrical specifications?
Our Capability: We understand global markets. Whether you require 220V, 380V, 415V, 480V voltage or 50Hz, 60Hz frequency, we can customize the motor for seamless integration with your local power grid.
Demanding professional results and aesthetic excellence?
Our Guarantee: A stable, reliable pump is the foundation of a stunning water feature. Our pumps operate smoothly with low noise, ensuring your fountain's impact is consistently impressive, enhancing your project's overall quality.
Applications: Large Landscape Fountains, Musical Fountains, Water Curtain, Artificial Waterfalls, Industrial Circulation Systems, Cooling Water Boosting, Long-Distance Water Transfer.
Your Customization Options :
Voltage/Frequency Customization
Precise Head/Flow Matching
Special Materials (e.g., Duplex Stainless Steel)
Cable Length Customization
Discharge Size/Connection Type
Explosion-Proof Motor (Ex d IIB T4)
Special Coating/Surface Finish
Don't let an unsuitable pump be the weak link in your project!
Click to Enquire, Get FREE:
Accurate pump selection advice based on your specific working conditions.
A detailed technical proposal and quotation meeting all your requirements.
Quality assurance and after-sales service commitment from a 40-year manufacturer.
Choose Us for: Reliability, Professionalism, and Peace of
