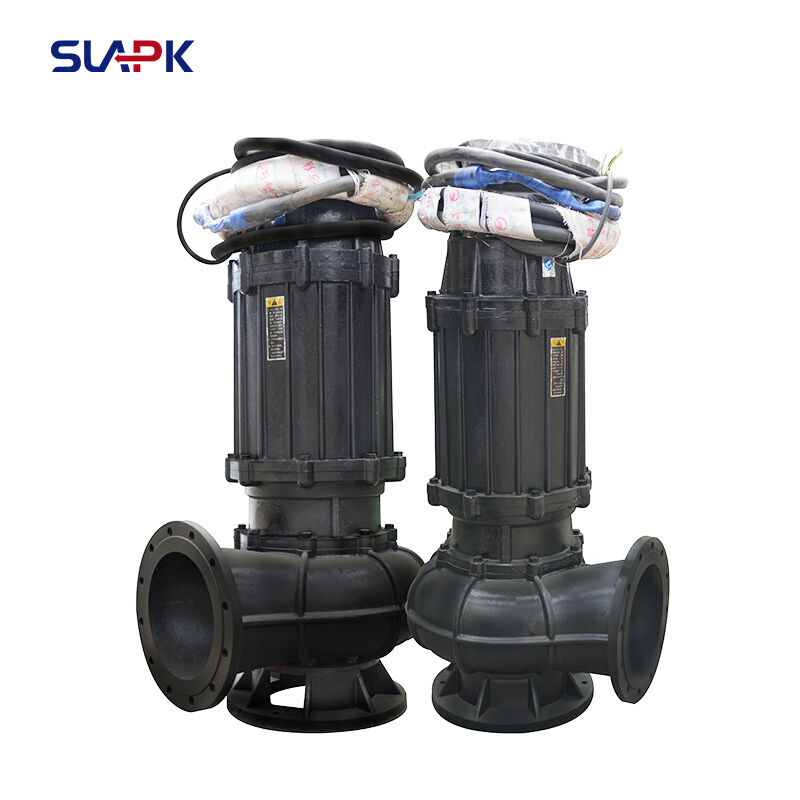

High-Efficiency Submersible Sewage Pump, 220m³/h Flow Municipal Engineering Detailed Installation Manual

Περιγραφή προϊόντων

High-Efficiency Submersible Sewage Pump, 220m³/h Flow Municipal Engineering Detailed Installation Manual

Introduction

In modern municipal engineering projects—ranging from urban drainage systems and wastewater treatment plants to flood control infrastructure—the high-efficiency submersible sewage pump has become an indispensable component. With a designed flow rate of 220 m³/h, this pump model is engineered for reliable, continuous operation in demanding environments while maintaining energy efficiency and low maintenance requirements.

This detailed installation manual provides step-by-step guidance for engineers, contractors, and facility managers to ensure safe, compliant, and optimal deployment of the 220 m³/h submersible sewage pump in municipal applications.

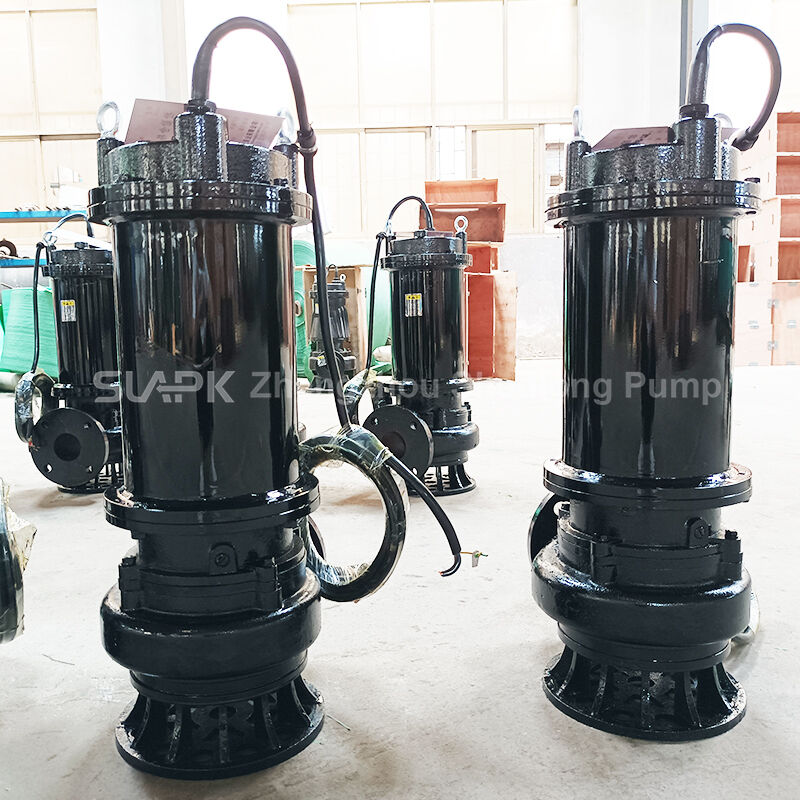

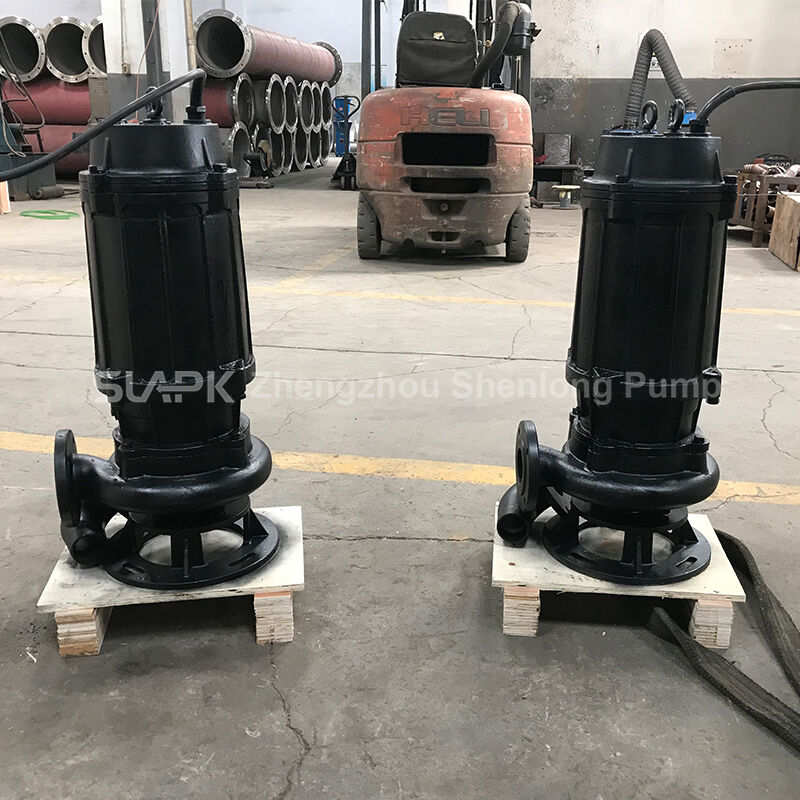

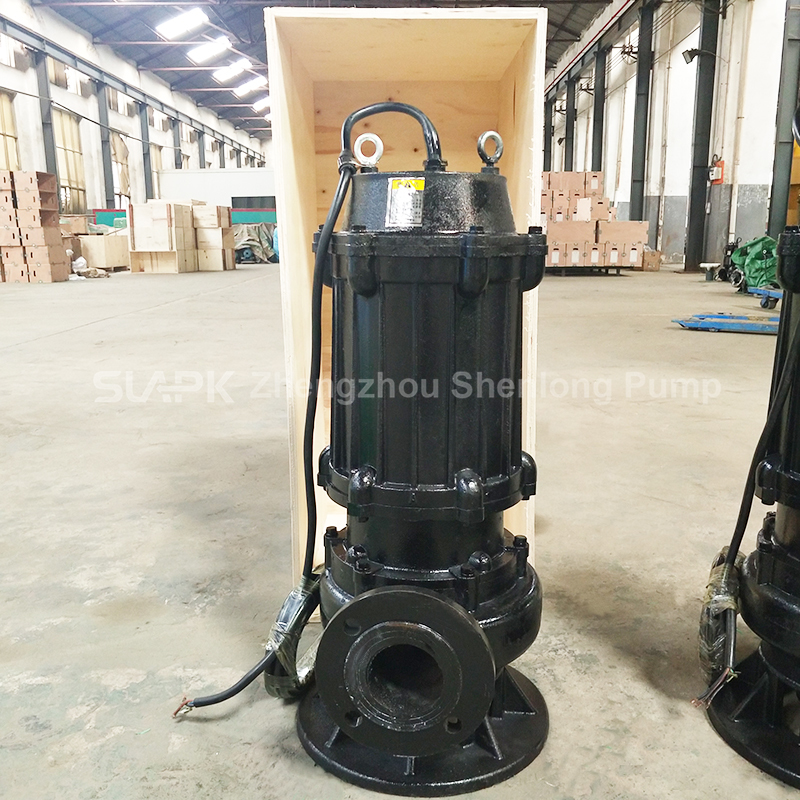

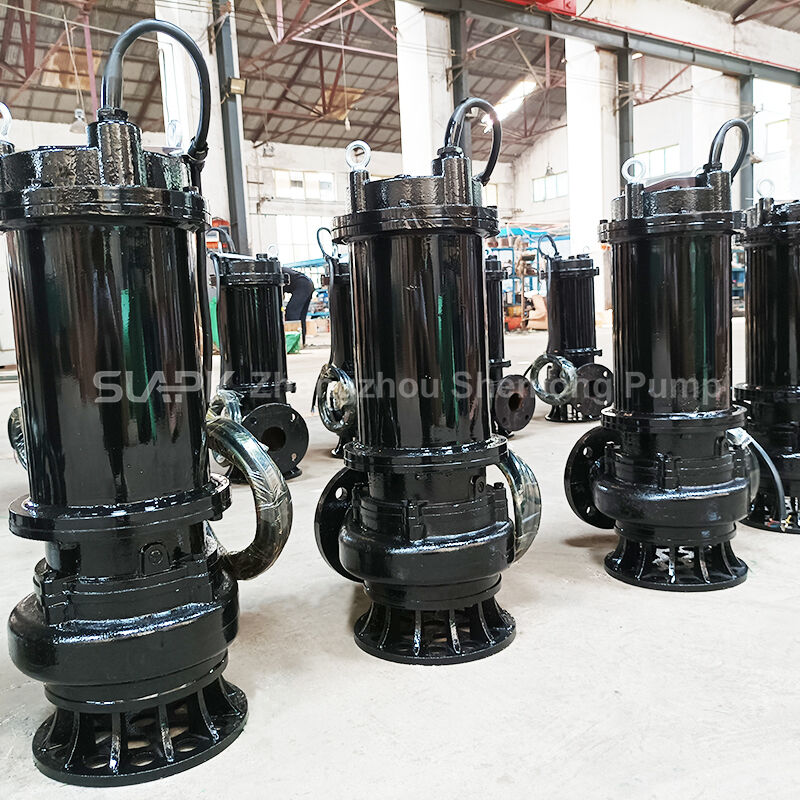

1. Product Overview

Key Specifications:

Flow Rate: 220 m³/h (±5% tolerance under rated conditions)

Head Range: Typically 10–35 meters (varies by model configuration)

Motor Power: 18.5 kW – 30 kW (380V, 50Hz, 3-phase)

Impeller Type: Anti-clogging single or double-channel vortex design

Pump Casing Material: Ductile cast iron or optional stainless steel (304/316)

Mechanical Seal: Dual-end face tungsten carbide seals with oil chamber protection

Temperature Limit: ≤40°C (medium), pH 5–9

Solid Handling: Capable of passing solids up to 50% of discharge port diameter (e.g., ~75 mm for DN150 outlet)

Note: Always verify exact model specifications with your supplier before installation.

2. Pre-Installation Checklist

Before beginning installation, confirm the following:

✅ Site Conditions

Sump pit dimensions meet minimum clearance requirements (typically ≥1.2× pump width)

Inlet and outlet piping aligned per manufacturer’s layout diagram

Adequate ventilation and access for maintenance

✅ Electrical Readiness

Power supply: 380V ±5%, 50Hz, grounded 3-phase system

Control panel equipped with overload, phase-loss, and leakage protection

Optional: Automatic control cabinet with level sensors (recommended for unattended operation)

✅ Lifting & Safety Equipment

Stainless steel guide rail system (if using auto-coupling)

Certified hoist or chain block (capacity ≥1.5× pump weight)

PPE: Waterproof boots, gloves, gas detector (for confined space entry)

3. Installation Steps

Step 1: Prepare the Sump Basin

Clean debris from the sump floor.

Ensure the base is level and free of sharp objects.

Install guide rails vertically (if using auto-coupling system) and secure with anchor bolts.

Step 2: Assemble the Discharge Pipe

Connect the discharge flange to the riser pipe using compatible gaskets and bolts.

For auto-coupling models: Attach the coupling base to the discharge elbow at the sump bottom.

Step 3: Lower the Pump

Secure the lifting chain or cable to the pump’s designated eye bolt.

Slowly lower the pump along the guide rails until it self-aligns and locks onto the coupling base.

Verify that the pump sits firmly without tilting.

⚠️ Never lift the pump by the power cable.

Step 4: Electrical Connection

Route the power cable through a waterproof conduit.

Connect to the terminal box inside the control panel per wiring diagram.

Perform insulation resistance test (>1 MΩ) before energizing.

Step 5: Commissioning Test

Fill the sump to operating level (above minimum submergence mark).

Briefly jog the motor to confirm rotation direction (clockwise when viewed from top).

Run continuously for 30 minutes; monitor vibration, noise, and temperature.

Check for leaks at seals and flange joints.

4. Operational Best Practices

Minimum Submergence: Always maintain liquid level above the motor cooling jacket.

Dry-Run Protection: Never operate without sufficient liquid—thermal overload may occur within minutes.

Regular Inspection:

Monthly: Check seal integrity and cable condition

Quarterly: Inspect impeller for wear or clogging

Annually: Replace mechanical seals if leakage >10 mL/day detected

5. Troubleshooting Guide

6. Maintenance & Service Life

With proper installation and routine care, a high-quality 220 m³/h submersible sewage pump can achieve:

Service life: 8,000–15,000 operating hours

MTBF (Mean Time Between Failures): >3 years in municipal service

Energy savings: Up to 15–25% vs. conventional pumps due to optimized hydraulic design

Conclusion

The 220 m³/h high-efficiency submersible sewage pump represents a robust, cost-effective solution for municipal wastewater management. By following this installation manual, operators can ensure maximum reliability, safety, and lifecycle performance—reducing both operational costs and environmental risk.
